Drilling
Ø26
Tapping
M20
Loading
ATC

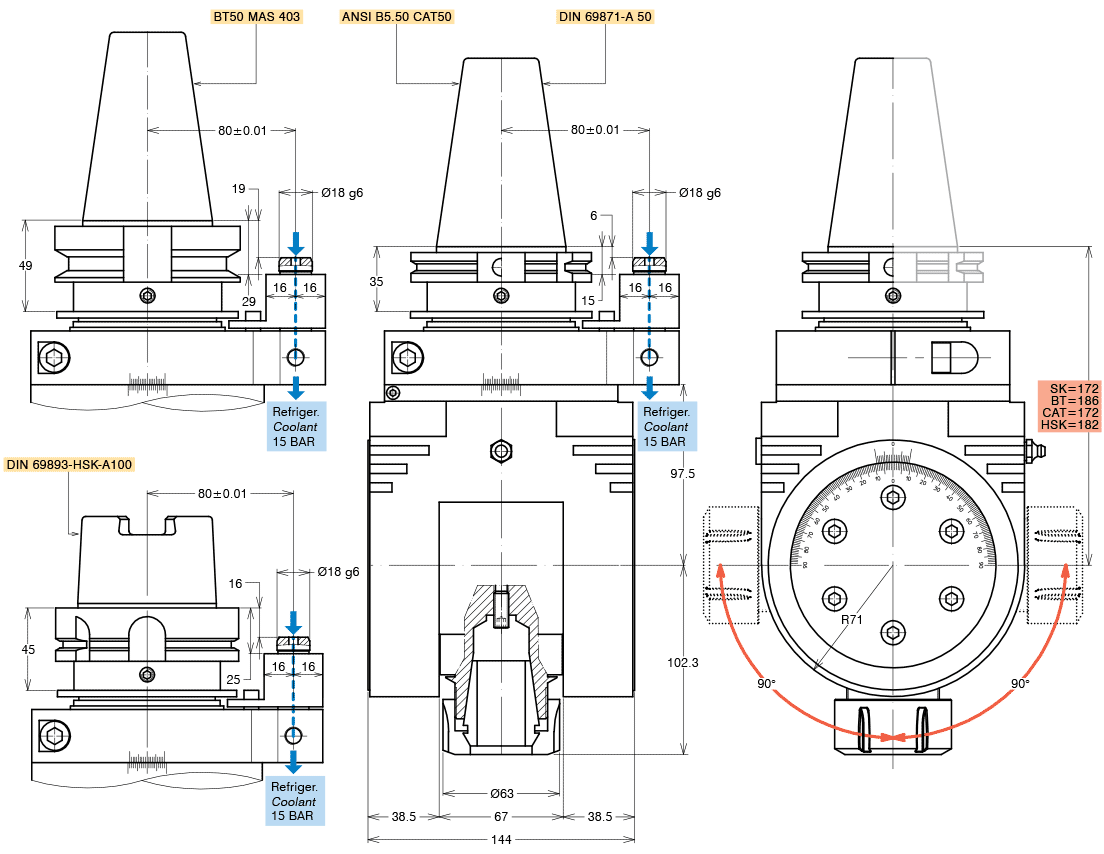

TECHNICAL FEATURES
| Type | T40-SK50 | Code | 124965.100.80 |
| Type | T40-BT50 | Code | 124966.100.80 |
| Type | T40-CAT50 | Code | 124967.100.80 |
| Type | T40-HSK100 | Code | 124968.100.80 |
| Tool-holder for collet | ER 40 |
| Input shank rotation | DX / RH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 3500 rpm |
| Torque | 30 Nm |
| Max axial load | 1200 N |
| Weight | 17 Kg |
| Grease lubricated | Klüber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER40 collet DIN 6499/B | 411240.100 |
| Tapping collet ET-1-40 with compensation | 401240.200 |
| Tapping collet ER40 with square | 411240.200 |
| Weldon spindle type | |
| ABS license Komet spindle type | |
| DIN 69893-HSK spindle type | |
| Pin pitch 110 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
