Drilling
Ø3
Tapping
M3
Loading
ATC

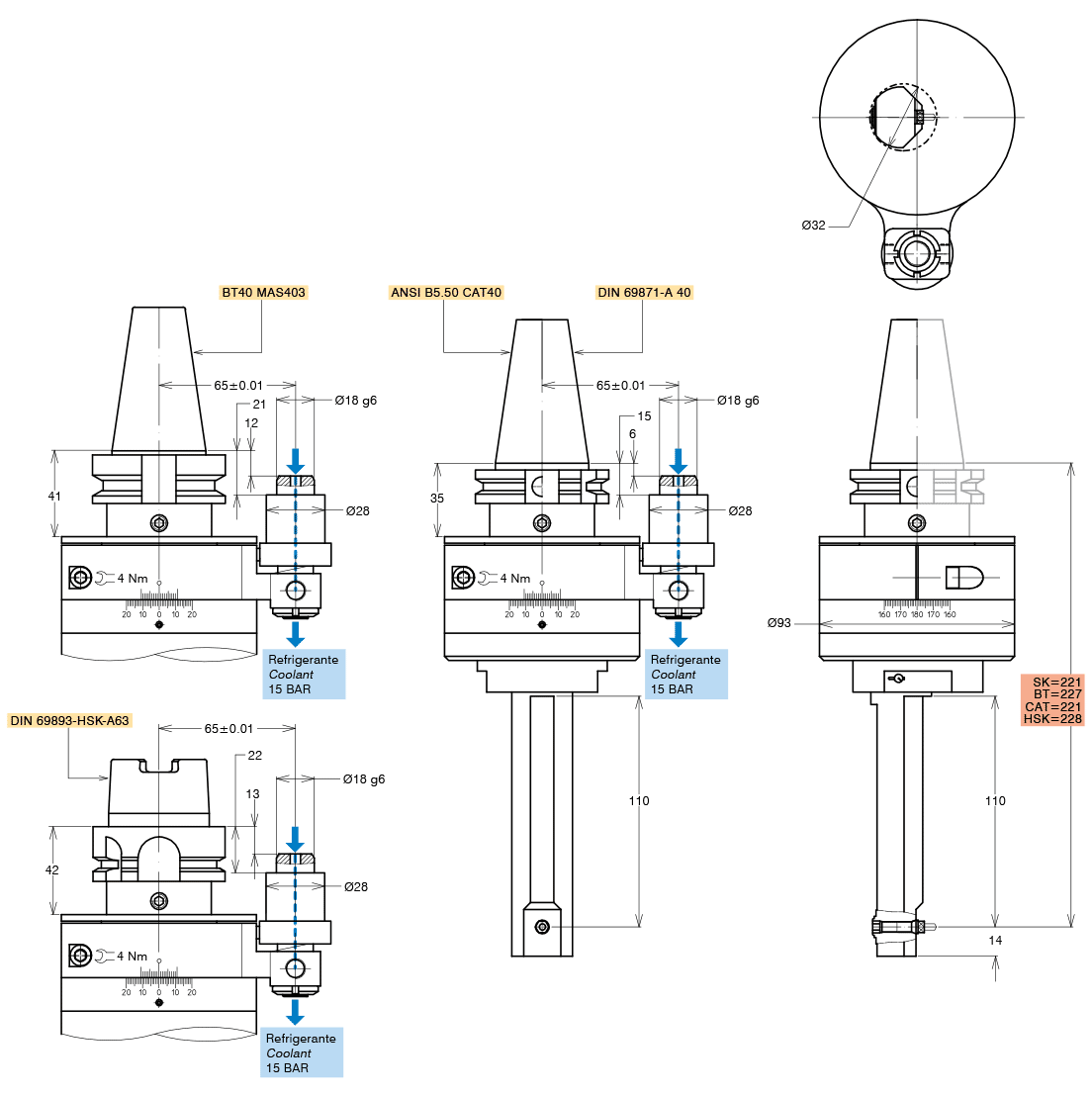

TECHNICAL FEATURES
| Type | A5-SK40-S218 | Code | 124405.100-S218 |
| Type | A5-CAT40-S218 | Code | 124407.100-S218 |
| Type | A5-BT40-S223 | Code | 124406.100-S223 |
| Type | A5-HSK63-S225 | Code | 124408.100-S225 |
| Tool-holder for collet | 6023E |
| Input shank rotation | DX / RH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1.1 |
| Max speed | 8000 rpm |
| Weight | 5 Kg |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| 6023E collet | |
| Pin pitch 80 mm |
| Standard stop-block | 311201.025 |
| Grease tube | |
| Storage case |
