Drilling
Ø10
Tapping
M8
Loading
ATC

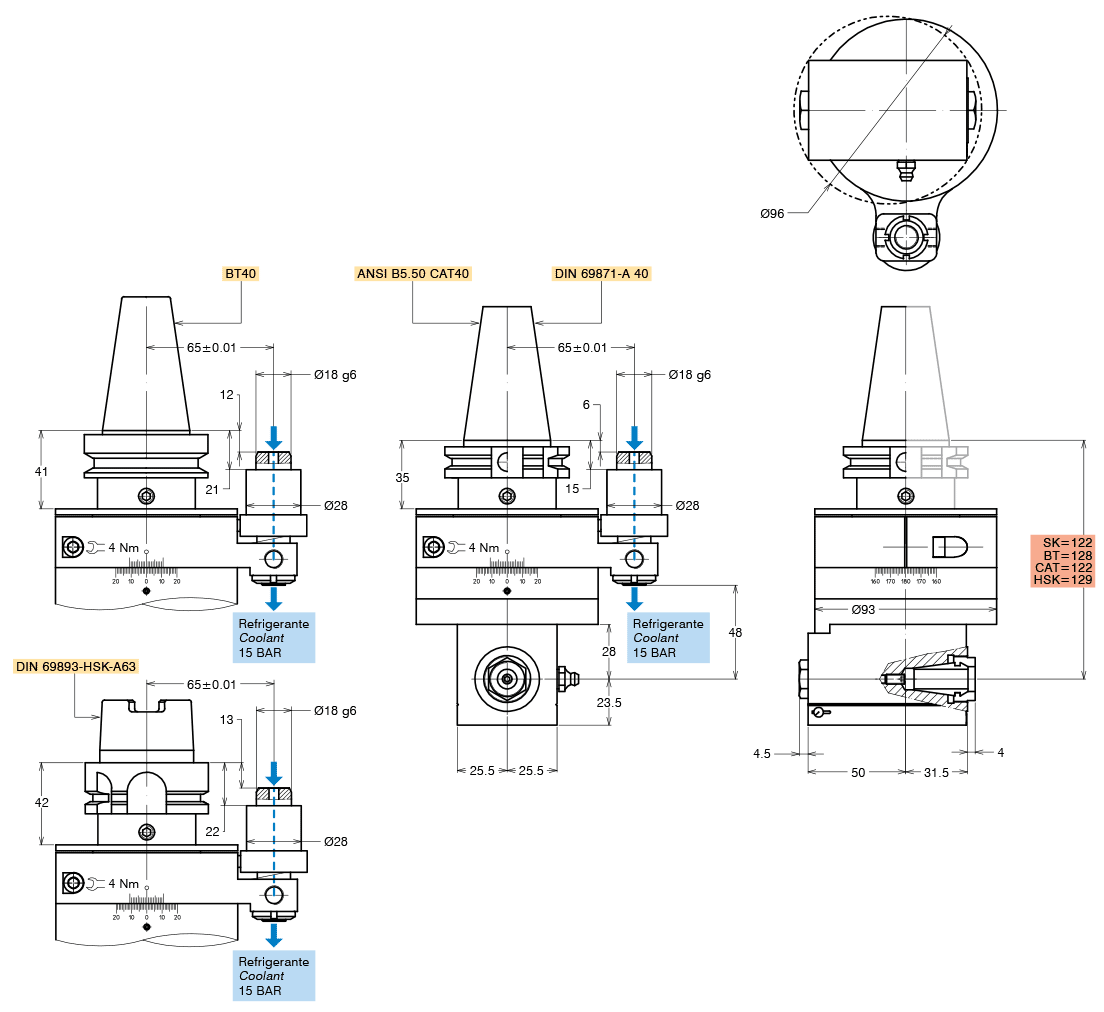

TECHNICAL FEATURES
| Type | A16-SK40 | Code | 124928.100 |
| Type | A16-BT40 | Code | 124933.100 |
| Type | A16-CAT40 | Code | 124996.100 |
| Type | A16-HSK63 | Code | 124943.100 |
| Tool-holder for collet | ER 16 |
| Input shank rotation | SX / LH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 7000 rpm |
| Torque | 18 Nm |
| Max axial load | 450 N |
| Weight | 4 Kg |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER16 collet DIN 6499/B | 411216.100 |
| Tapping collet ET-1-16 with compensation | 401216.200 |
| Tapping collet ER16 with square | 411216.200 |
| Weldon spindle type | |
| Pin pitch 80 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
