Drilling
Ø13
Tapping
M10
Loading
ATC

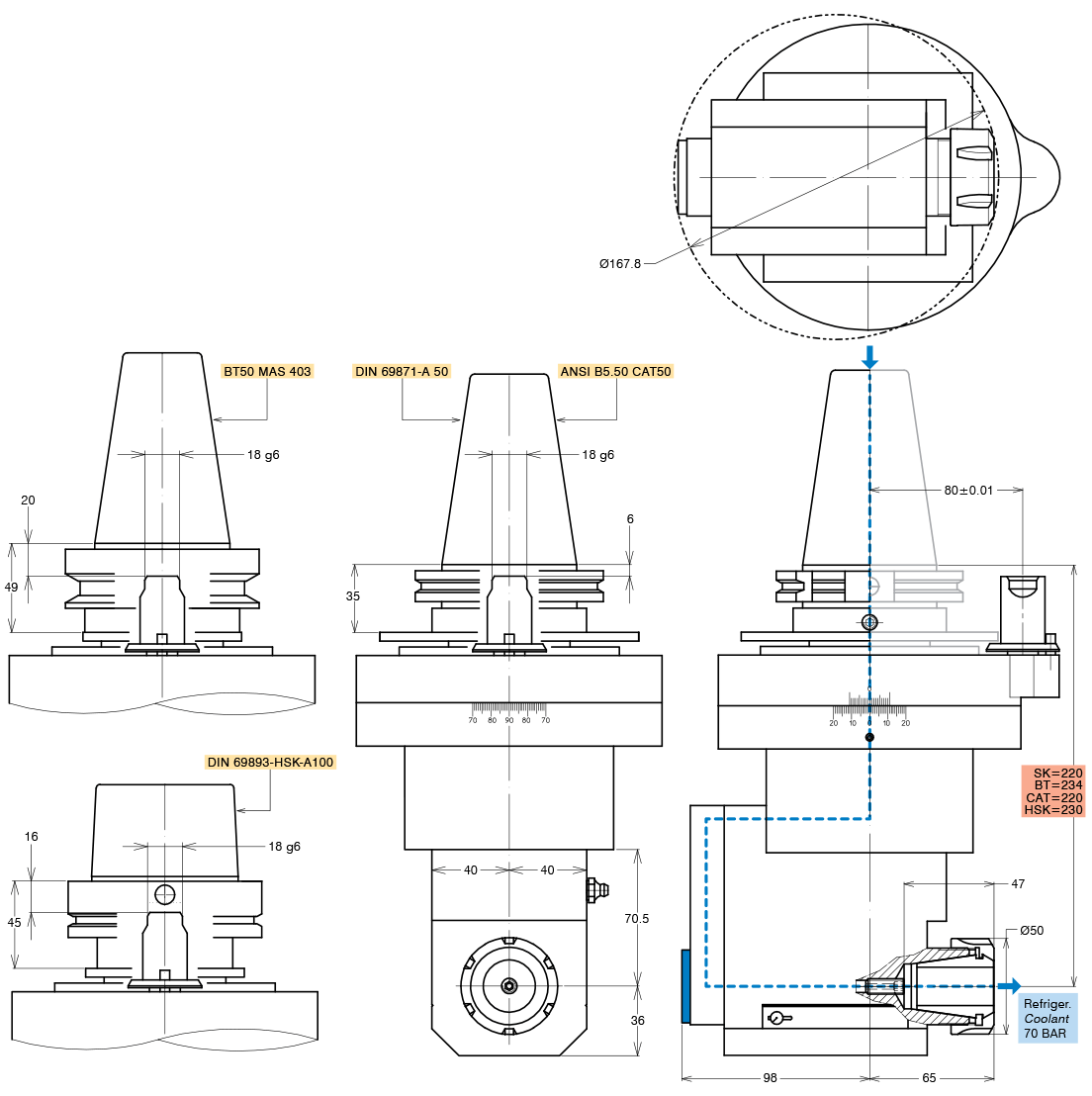

TECHNICAL FEATURES
| Type | A20-SK50-R | Code | 1249127.100-R |
| Type | A20-BT50-R | Code | 1249128.100-R |
| Type | A20-CAT50-R | Code | 1249129.100-R |
| Type | A20-HSK100-R | Code | 1249130.100-R |
| Tool-holder for collet | ER 20 |
| Input shank rotation | DX / RH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 6000 rpm |
| Torque | 20 Nm |
| Max axial load | 300 N |
| Weight | 10 Kg |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER20 collet DIN 6499/B | 411220.100 |
| Tapping collet ET-1-20 with compensation | 401220.200 |
| Tapping collet ER20 with square | 411220.200 |
| Weldon spindle type | |
| ABS license Komet spindle type | |
| Pin pitch 110 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
