Drilling
Ø7
Tapping
M6
Loading
ATC

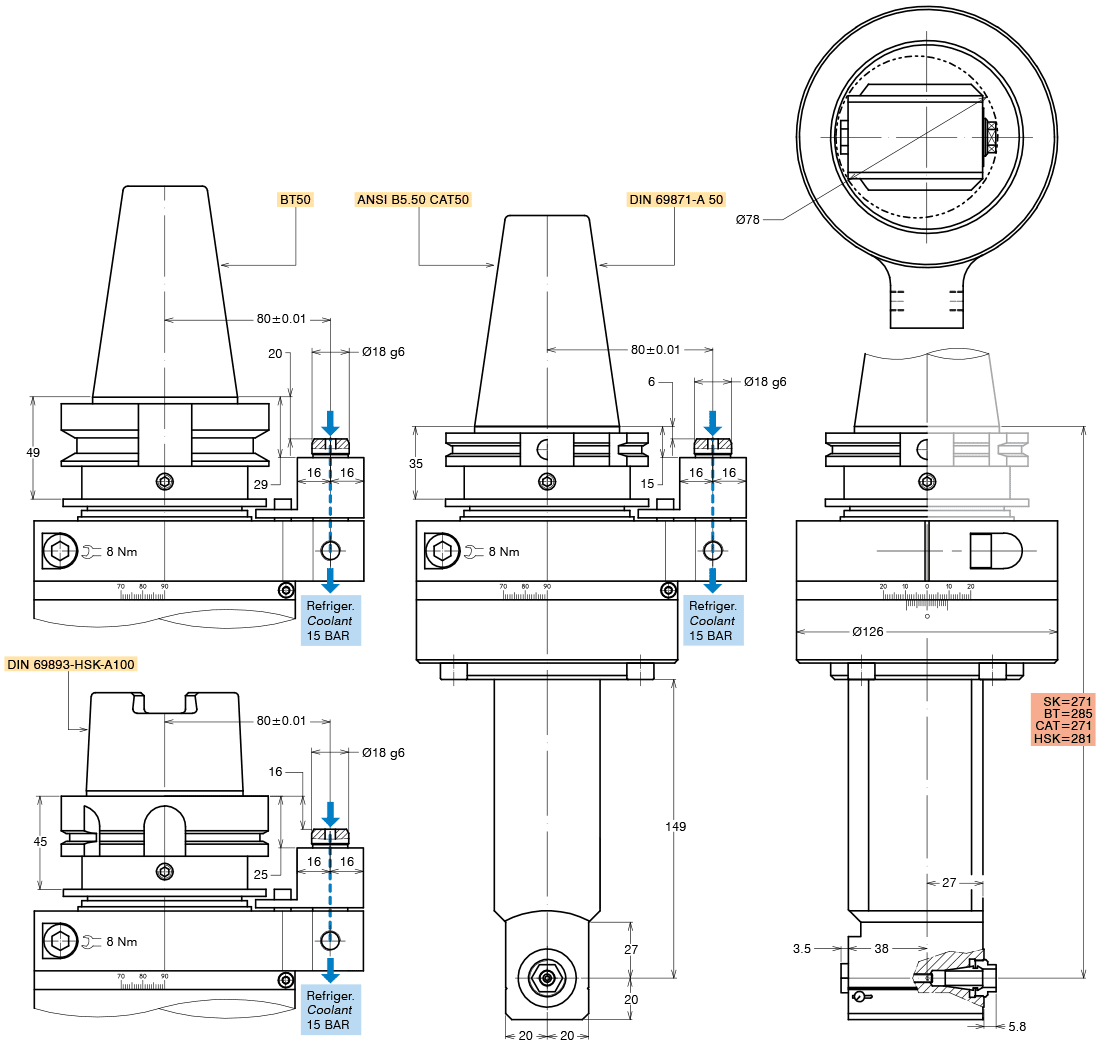

TECHNICAL FEATURES
| Type | A11-SK50-E271 | Code | 1249102.100-E271 |
| Type | A11-BT50-E285 | Code | 1249101.100-E285 |
| Type | A11-CAT50-E271 | Code | 1249103.100-E271 |
| Type | A11-HSK100-E281 | Code | 1249104.100-E281 |
| Tool-holder for collet | ER 11 |
| Input shank rotation | SX / LH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 8000 rpm |
| Torque | 7 Nm |
| Max axial load | 330 N |
| Weight | 7 Kg |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER11 collet DIN 6499/B | 411211.100 |
| Tapping collet ER11 with square | 411201.200 |
| Weldon spindle type | |
| Pin pitch 110 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
