Drilling
Ø7
Tapping
M6
Loading
ATC

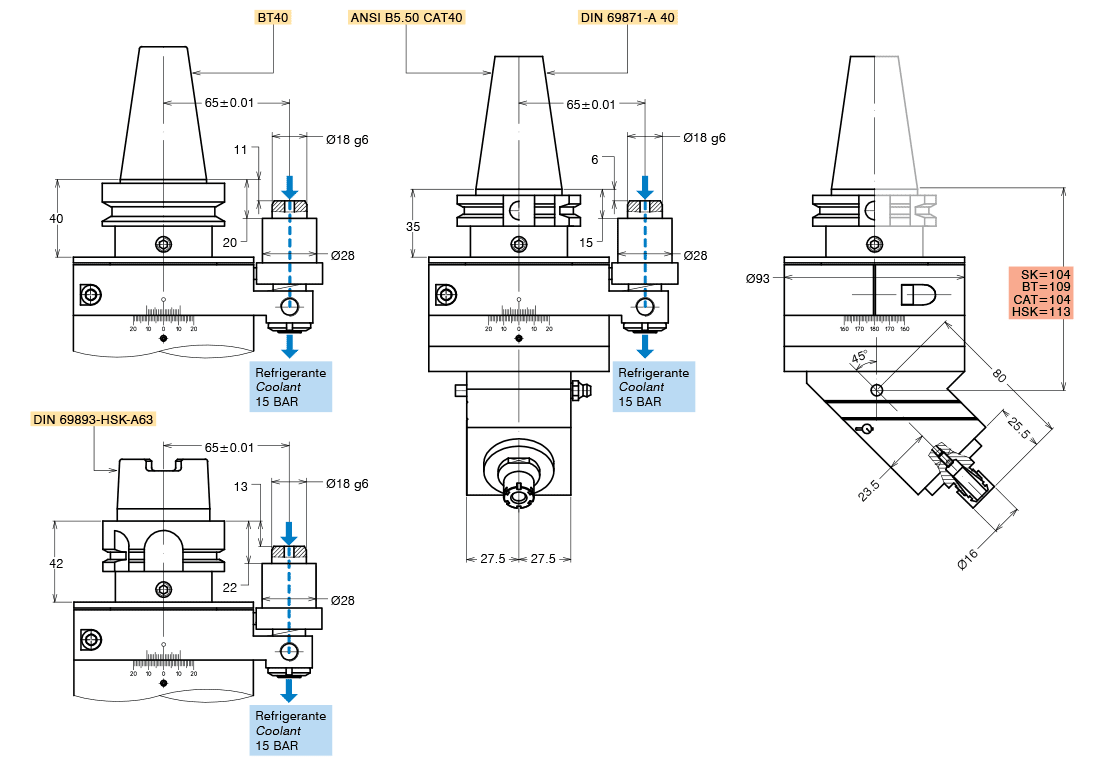

TECHNICAL FEATURES
| Type | A11-SK40-45 | Code | S127111.100 |
| Type | A11-BT40-45 | Code | S127111.200 |
| Type | A11-CAT40-45 | Code | S127111.400 |
| Type | A11-HSK63-45 | Code | S127111.300 |
| Tool-holder for collet | ER 11 |
| Input shank rotation | DX / RH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 6000 rpm |
| Spindle max power | 6.9 Nm @ 1000 rpm |
| Max axial load | 350 N |
| Weight | 4.6 Kg |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER11 collet DIN 6499/B | 411211.100 |
| Tapping collet ER11 with square | 411211.200 |
| Weldon spindle type | |
| Pin pitch 80 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
