Drilling
Ø10
Tapping
M8
Loading
ATC
TECHNICAL FEATURES

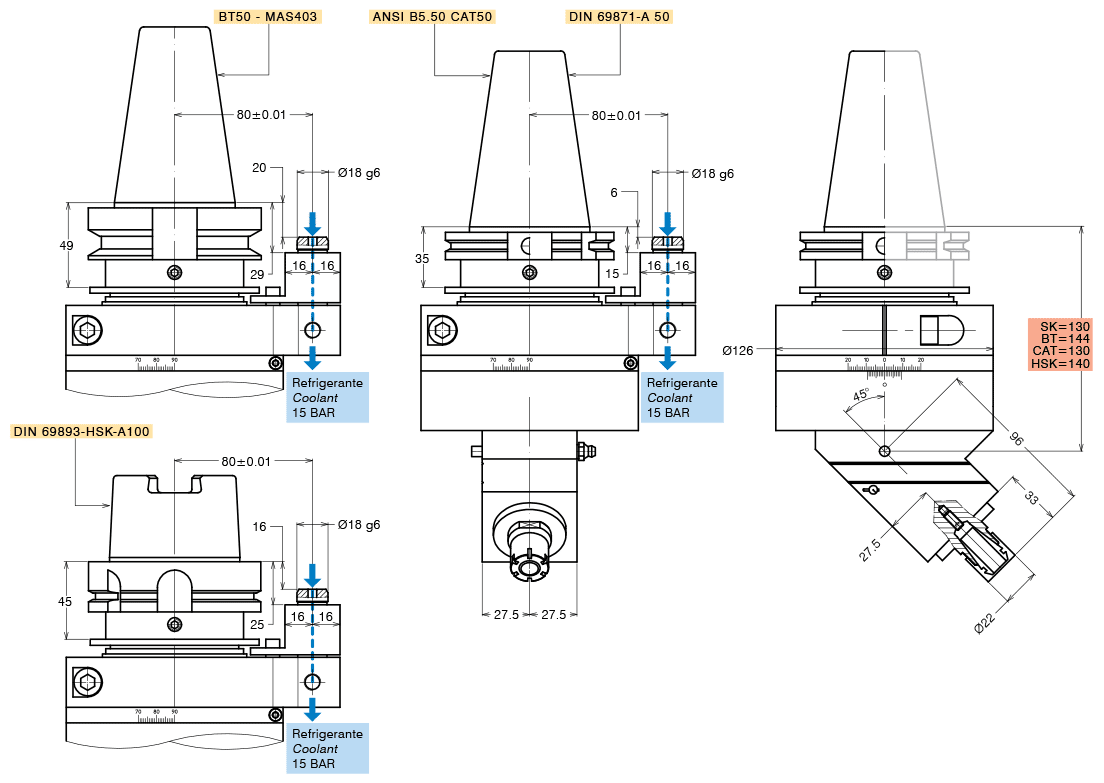

| Type | A16-SK50-45 | Code | S127116.110 |
| Type | A16-BT50-45 | Code | S127116.210 |
| Type | A16-CAT50-45 | Code | S127116.410 |
| Type | A16-HSK100-45 | Code | S127116.310 |
| Tool-holder for collet | ER 16 |
| Input shank rotation | DX / RH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 6000 rpm |
| Spindle max power | 12 Nm @ 1000 rpm |
| Max axial load | 1000 N |
| Weight | 10 Kg |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER16 collet DIN 6499/B | 411216.100 |
| Tapping collet ET-1-16 with compensation | 401216.200 |
| Tapping collet ER16 with square | 411216.200 |
| Weldon spindle type | |
| Pin pitch 110 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
