Drilling
Ø13
Tapping
M10
Loading
ATC

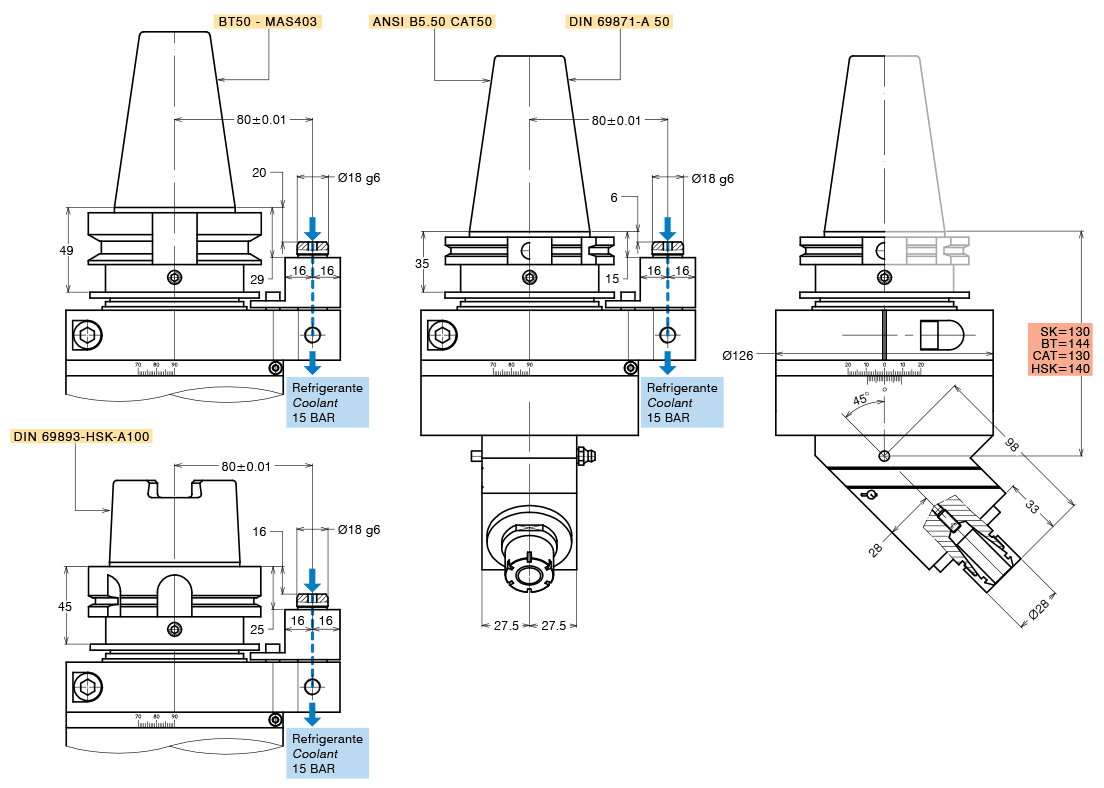

TECHNICAL FEATURES
| Type | A20-SK50-45 | Code | S127120.110 |
| Type | A20-BT50-45 | Code | S127120.210 |
| Type | A20-CAT50-45 | Code | S127120.410 |
| Type | A20-HSK100-45 | Code | S127120.310 |
| Tool-holder for collet | ER 20 |
| Input shank rotation | DX / RH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 6000 rpm |
| Spindle max power | 19 Nm @ 1000 rpm |
| Max axial load | 1000 N |
| Weight | 10.1 Kg |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER20 collet DIN 6499/B | 411220.100 |
| Tapping collet ET-1-20 with compensation | 401220.200 |
| Tapping collet ER20 with square | 411220.200 |
| Weldon spindle type | |
| ABS license Komet spindle type | |
| Pin pitch 110 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
