Drilling
Ø20
Tapping
M14
Loading
ATC

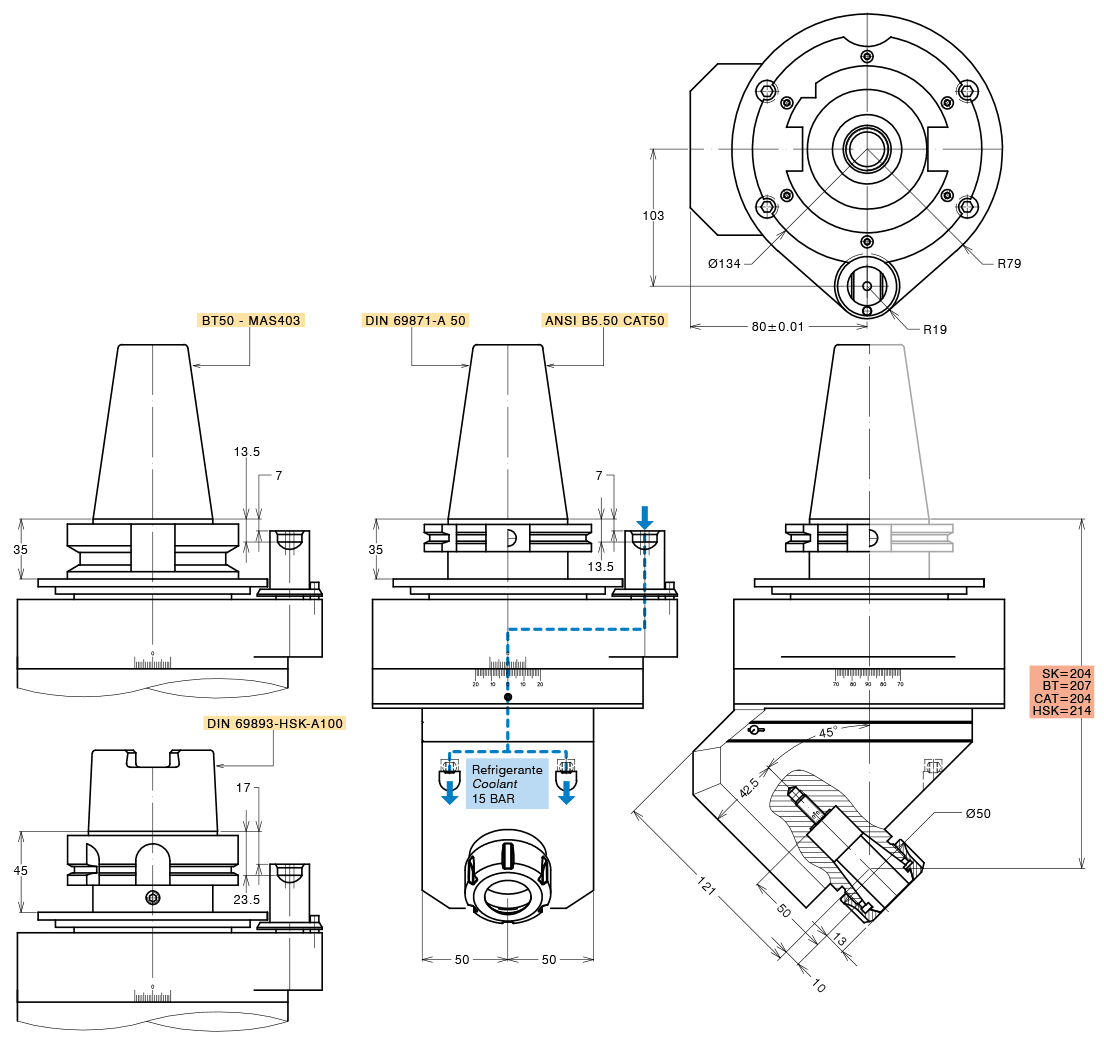

TECHNICAL FEATURES
| Type | A32-SK50-45E | Code | 124917.100.45E |
| Type | A32-BT50-45E | Code | 124932.100.45E |
| Type | A32-CAT50-45E | Code | 124993.100.45E |
| Type | A32-HSK100-45E | Code | 124938.100.45E |
| Tool-holder for collet | ER 32 |
| Input shank rotation | SX / LH |
| Output spindle rotation | DX / RH |
| Transmission ratio | 1:1 |
| Max speed | 5000 rpm |
| Spindle max power | 6 Kw |
| Max axial load | 2500 N |
| Grease lubricated | Kluber Isoflex NBU 15 |
OPTIONS
STANDARD EQUIPMENT
| ER32 collet DIN 6499/B | 411232.100 |
| Tapping collet ET-1-32 with compensation | 401232.200 |
| Tapping collet ER32 with square | 411232.200 |
| Weldon spindle type | |
| ABS license Komet spindle type | |
| Pin pitch 110 mm |
| Standard stop-block | 311201.025 |
| ER nut | |
| Clamping wrench | |
| Grease tube | |
| Storage case |
